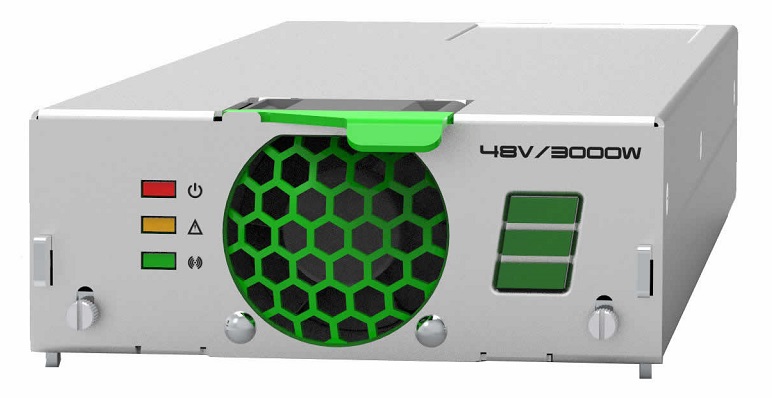

Serenity 48V/3.0kW

Technical Specifications

Input voltage	90-300Vac
Frequency	45-65Hz
Input Protection	Off < 85-310Vac < Off, L& N input fuses, MOV transient protection
Output voltage	42-58Vdc (54 Vdc nominal)
Max Power/Max Current	3000W/62.5A @ 48Vdc
Output Protection	OV shutdown, Short circuit proof, Hot-plug-in inrush current limiting. Output fuse, Over temp shut-off
Efficiency	95.5%
Power density	37.4 W/in3
Communication	CAN Bus
Operating temperature	-40 to +75°C
Dimension (WxHxD)	106 x 41.5 x 300 (mm)
Applicable standards	EN 60950-1, EN 55022 (Class B), EN 55024, EN 300019-1-1/2/3, ROHS complied
