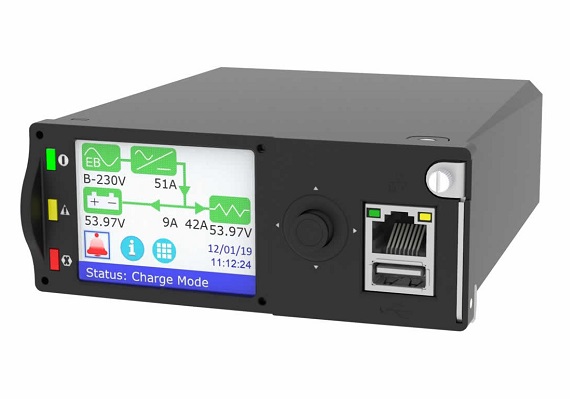

M2000

Technical Specifications

General:

• Operating voltage: 36 – 70Vdc.
• Low power consumption: 3W (Nominal).
• Dimensions (WxDxH): 115 x 130 x 43 mm.
• Operating temperature range: -20°C to +60°C.

System Interfaces/Slave Units:

• Supports small to large systems by controlling up to 120 rectifiers.
• Dynamic battery current control and temperature compensation.
• Supports multiple slave analog interface units.
• Single analogue interface unit provides 6 voltage, 3 current, 2 temp Channels and 3 LVD.
• Up to 64 potential free inputs / outputs.
• Support for DG control and renewable hybrid system by simple configuration changes.

Communication Interfaces:

• 2 x isolated system CAN bus.
• 2 x isolated RS485-Modbus RTU configurable for multiple slave devices and functions.
• 1 x RS 232-For GSM/GPRS/3G modem.
• 10/100 Mbps Ethernet interface-MDI / MDI-X, Auto negotiation, Static/DHCP IP, IPv4/IPv6, HTTP/HTTPS, SNMP V2c/V3, SNTP, SMTP and FTP.
• USB 2.0 interface-supports mass storage. Host mode and device mode for programming LEDs for alarm indications.
