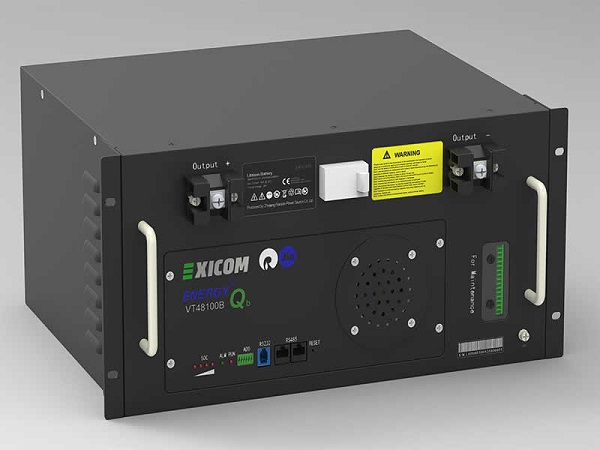

Energy Qb 48V/100 Ah
Technical Specifications
| Module | Module: 48V/100Ah, cells in 1P15S configuration, LFP chemistry |
| Voltage Range | 48V (nominal), 42-54Vdc |
| Rated energy | 4800Wh @ 25°C, 0.5C charge/0.5C discharge |
| Nominal current | 50A (charge); 50A (discharge) |
| Peak current | 125A for 4 seconds (charge); 150 for 8 sec (discharge) |
| Cycle Life | 3,000 cycles @ 35°C, 0.5C charge/0.5C discharge and 80% DoD |
| Communication Interface | RS485 for communication to CBMS or SMPS power plant |
| Indications | SoC Level/run/alarm indication on front panel |
| Protection & alarms | Over/under-voltage, over-current, over/under-temperature, SMPS comm. fail, temp. sensor disconnect, power device failure |
| Working temperature | 0 to 55°C for charge; -10 to 55°C for discharge |
| Weight | 46 Kg |
| Dimensions (WxHxD) | 482 x 400 x 225 mm |
| Applicable standards | Transportation- UN 38.3, Safety & EMI-IEC 60950; EN 61000, Chapter 6-2 and 6-3 |
